The Specialists in Pressing and Fusing
Contact Us

Naomoto Base Units & Irons - Final Pressing

See Naomoto final pressing forms which can be fitted to FB or FBR base units


Product Image
View Larger

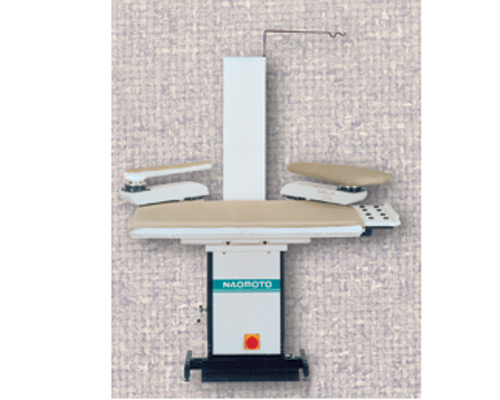

FBJ - Rectangular vacuum/blowing with two swing arms

Standard Features
  • One common base unit, model FBR-Vacuum only, Model FBJ-Vacuum and blowing.
  • Air exhaust chimney.
  • Easy lever operated spring loaded working height adjustment.
  • Air blowing volume control.
  • Complete unit mounted on casters for easy movement.
  • Quality steel or wood garment catch trays, according to model type.
  • Split or step/kick pedal deck for vacuum/blowing models.
Options
  • Ergonomic iron lifter assembly.
  • Full range of interchangeable press shapes.


Product Image
View Larger

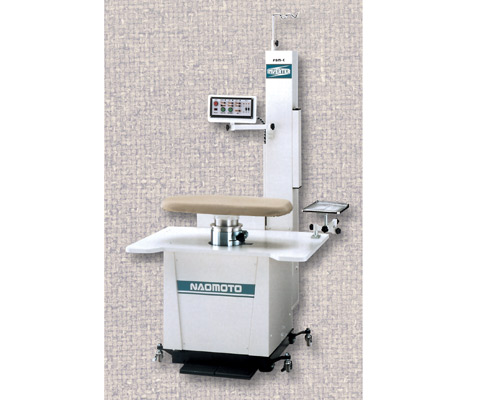

FBM Inverter Board CM1710

The FBM Inverter Series is the most innovative and superbly engineered self-contained pressing unit available anywhere. It combines superior performance and technology to give you the highest quality and finest control in pressing and finishing your garments. FBM series is available in utility board with swing arm, rectangular with two swing arms, seam opening units, and lining/touch-up station.

Standard Features
  • Inverter control of motor gives ultra-fine volume control of vacuum or air blowing for perfect pressing of the most difficult fabrics.
  • Separate split pedal operation for vacuum and blowing.
  • Easy lever operated, spring loaded working height adjustment.
  • Microprocessor control with following functions: - Automatic adjustment for optimum performance of the motor. -Automatic timed operation and sequence of steam, vacuum and/or blowing by pre-input program ensures quality control of pressing. - Program sequence activated by microswitch iron. -Visual diagnostic system for servicing, including time for pad and cover cleaning or changing.
  • Automatic shut-down of unit in event of internal problem.
  • Complete unit mounted on casters for easy movement.
Options
  • Ergonomic iron lifter assembly.
  • Full range of interchangeable press shapes.
  • Motor driven adjustable working height at the push of a button for FBM-1200DX special rectangular finishing table only.


Product Image
View Larger
CDP 420 Steam/Electric Iron

CDP 420J Available with micro-switch for automatic operation of programmable vacuum table.

Special Features
  • 2-in-1 hose design
  • Electric steam with steam feed and return
  • Electronic temperature control
  • Wider temperature range - 230°F to 410°F
Specifications
  • Electrical: 110/220 V, 500 W
  • Weight: 3.5 lbs. (1.6 kg)
  • Sole coating: Hard nickel + PTFE fiberglass


Product Image
View Larger

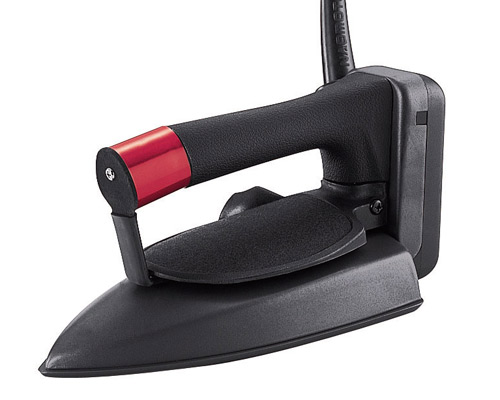

AE50 All Electric Iron

The AE50 is a lightweight (2.86 LBS) all electric specially designed iron for lining pressing. It has an electronic temperature control accurate to +/- 1 degree C. The base of the iron is Tuffram coated and has beveled edges for smooth, resistance free ironing. There are no leave off marks with a smooth finish so essential to high quality lining pressing.
